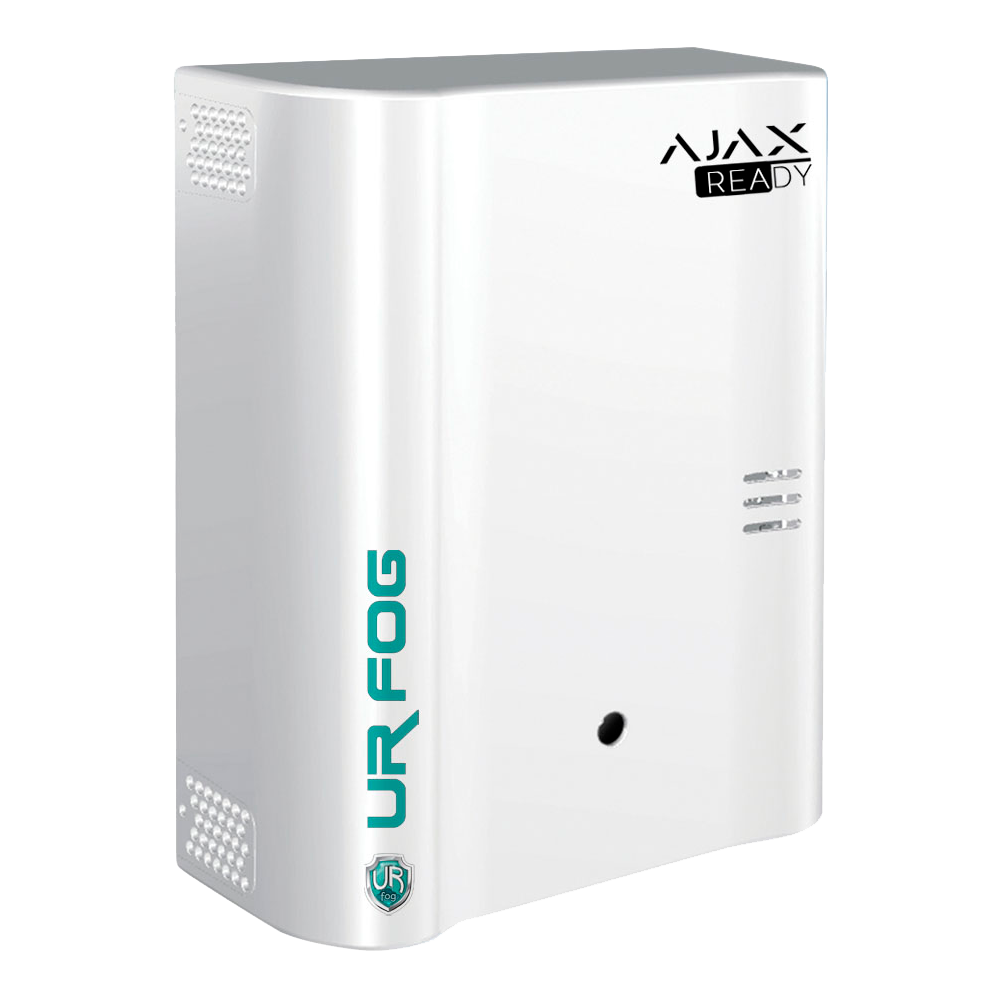

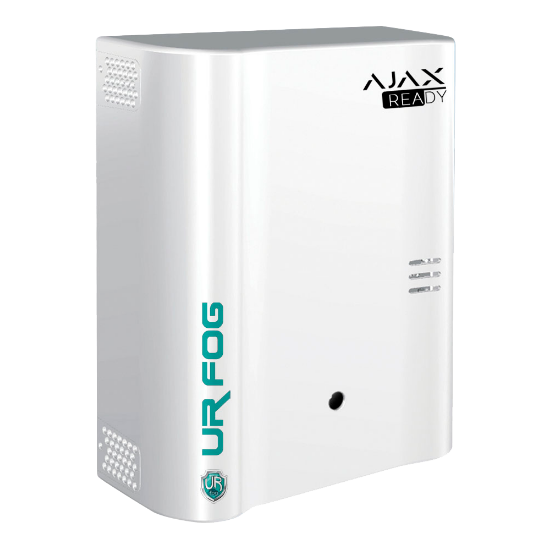

URFOG Generator 200m3 Battery Backup Ajax Ready

Du skal være logget ind for at kunne lave bestillinger


  • URFOG
  • Ajax Ready Tågekanon
  • Generarer 200 m3 tæt røg på 60 sekunder
  • 2 Ajax Relays (For armering og for trigger) er bygget ind i tågekanonen
  • Signal Buzzer
  • LED visual signal
  • Output 12VDC 300mA til extern enhed
  • Mulighed for backup battery (2x 12VDC 2.0Ah)
  • Justerbar affyrring i op til 28 s
  • Total affyrringstid 2 min
  • Total affyrringsvolume 850 m3
  • "Green Power technology" for lavt strømforbrug (max 170w)
  • Hvidt kabinet
  • 390 (H) x 300 (W) x 130 (D) mm
Varenr: FPU03ESM200A

  • URFOG
  • Ajax Ready Tågekanon
  • Generarer 200 m3 tæt røg på 60 sekunder
  • 2 Ajax Relays (For armering og for trigger) er bygget ind i tågekanonen
  • Signal Buzzer
  • LED visual signal
  • Output 12VDC 300mA til extern enhed
  • Mulighed for backup battery (2x 12VDC 2.0Ah)
  • Justerbar affyrring i op til 28 s
  • Total affyrringstid 2 min
  • Total affyrringsvolume 850 m3
  • "Green Power technology" for lavt strømforbrug (max 170w)
  • Hvidt kabinet
  • 390 (H) x 300 (W) x 130 (D) mm

DATABLAD

Brand URFOG
Ajax Relays 2 units already installed (for arming and executing)
Fog coverage 600 m3 (1 visibility meter)
200 m3 (zero visibility)
Fog Dispensing Time Configurable up to 28 seconds
Total Despensing Time 2 minutes
Total Quantity Dispensed 2550 m3 (1 visibility meter)
850 m3 (zero visibility)
Tank Capacity 0.5 L
Refill method Easy-to-install single-use bag
Heating Time (100%) < < 60 min
Reaction Time 200ms
Inputs 1 Arm Control / 1 Shot Control
Outputs Failure, Liquid and 12V@0.3A
Power AC 220 V
Nominal power consumed when armed 170 W / 37W
Backup Battery 12V/2Ah (not included) / 60' for backup operation without primary power supply
Dimensions 390 (H) x 300 (W) x 130 (D) mm
Weight 7.5 kg with a full tank
Installation type Vertical or horizontal
