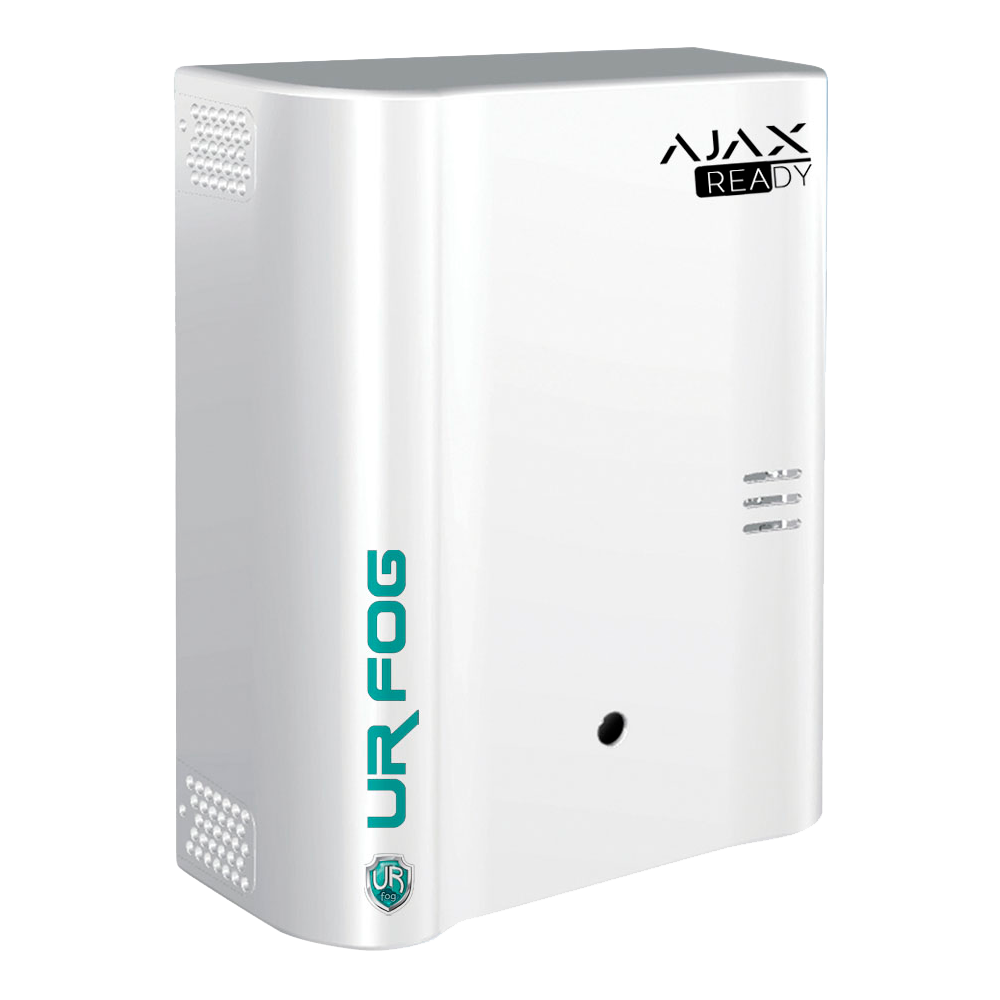

URFOG Generator 800m3 Battery Backup Ajax Ready

Du skal være logget ind for at kunne lave bestillinger


  • URFOG
  • Ajax Ready Tågekanon
  • Generarer 800 m3 tæt røg på 60 sekunder
  • 2 Ajax Relays (For armering og for trigger) er bygget ind i tågekanonen
  • Signal Buzzer
  • LED visual signal
  • Output 12VDC 300mA til extern enhed
  • Mulighed for backup battery (2x 12VDC 2.0Ah)
  • Justerbar affyrring i op til 69 s
  • Total affyrringstid 2.5 min
  • Total affyrringsvolume 1700 m3
  • "Green Power technology" for lavt strømforbrug (max 170w)
  • Hvidt kabinet
  • 390 (H) x 300 (W) x 130 (D) mm
Varenr: FPU03ESM800A

  • URFOG
  • Ajax Ready Tågekanon
  • Generarer 800 m3 tæt røg på 60 sekunder
  • 2 Ajax Relays (For armering og for trigger) er bygget ind i tågekanonen
  • Signal Buzzer
  • LED visual signal
  • Output 12VDC 300mA til extern enhed
  • Mulighed for backup battery (2x 12VDC 2.0Ah)
  • Justerbar affyrring i op til 69 s
  • Total affyrringstid 2.5 min
  • Total affyrringsvolume 1700 m3
  • "Green Power technology" for lavt strømforbrug (max 170w)
  • Hvidt kabinet
  • 390 (H) x 300 (W) x 130 (D) mm

DATABLAD

Brand URFOG
Ajax Relays 2 units already installed (for arming and executing)
Fog coverage 2400 m3 (1 visibility meter)
800 m3 (zero visibility)
Fog Dispensing Time Configurable up to 69 seconds
Total Despensing Time 2.5 minutes
Total Quantity Dispensed 5100 m3 (1 visibility meter)
1700 m3 (zero visibility)
Tank Capacity 1 L
Refill method Easy-to-install single-use bag
Heating Time (100%) 120 minutes
Reaction Time 200 ms
Inputs 1 Arm Control / 1 Shot Control
Outputs Failure, Liquid and 12V@0.3A
Power AC 220 V
Nominal power consumed when armed 280 W / 48W
Backup Battery 12V/2Ah (not included) / 60' for backup operation without primary power supply
Dimensions 390 (H) x 300 (W) x 130 (D) mm
Weight 9.5 Kg with full tank
Installation type Vertical or horizontal

  • URFOG
  • Ajax Ready Tågekanon
  • Generarer 800 m3 tæt røg på 60 sekunder
  • 2 Ajax Relays (For armering og for trigger) er bygget ind i tågekanonen
  • Signal Buzzer
  • LED visual signal
  • Output 12VDC 300mA til extern enhed
  • Mulighed for backup battery (2x 12VDC 2.0Ah)
  • Justerbar affyrring i op til 69 s
  • Total affyrringstid 2.5 min
  • Total affyrringsvolume 1700 m3
  • "Green Power technology" for lavt strømforbrug (max 170w)
  • Hvidt kabinet
  • 390 (H) x 300 (W) x 130 (D) mm

DATABLAD

Brand URFOG
Ajax Relays 2 units already installed (for arming and executing)
Fog coverage 2400 m3 (1 visibility meter)
800 m3 (zero visibility)
Fog Dispensing Time Configurable up to 69 seconds
Total Despensing Time 2.5 minutes
Total Quantity Dispensed 5100 m3 (1 visibility meter)
1700 m3 (zero visibility)
Tank Capacity 1 L
Refill method Easy-to-install single-use bag
Heating Time (100%) 120 minutes
Reaction Time 200 ms
Inputs 1 Arm Control / 1 Shot Control
Outputs Failure, Liquid and 12V@0.3A
Power AC 220 V
Nominal power consumed when armed 280 W / 48W
Backup Battery 12V/2Ah (not included) / 60' for backup operation without primary power supply
Dimensions 390 (H) x 300 (W) x 130 (D) mm
Weight 9.5 Kg with full tank
Installation type Vertical or horizontal
