Varenr. UT210D

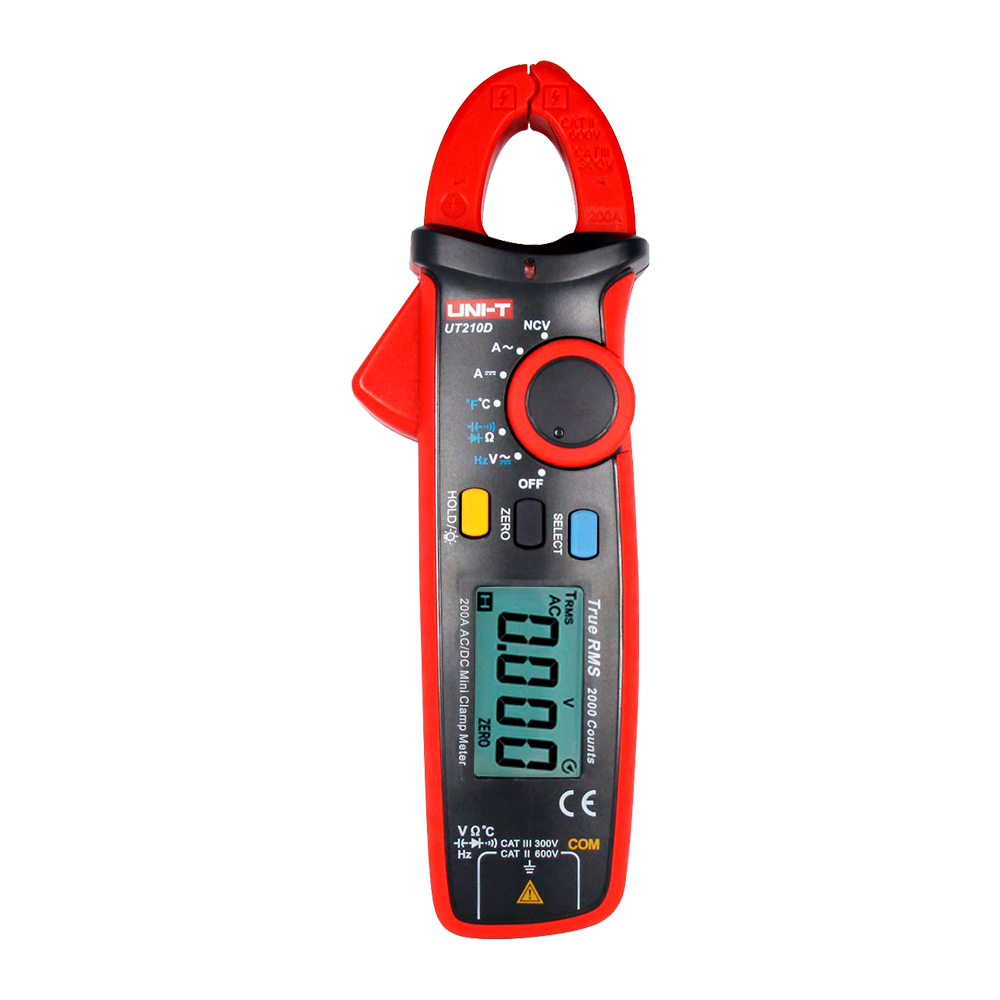

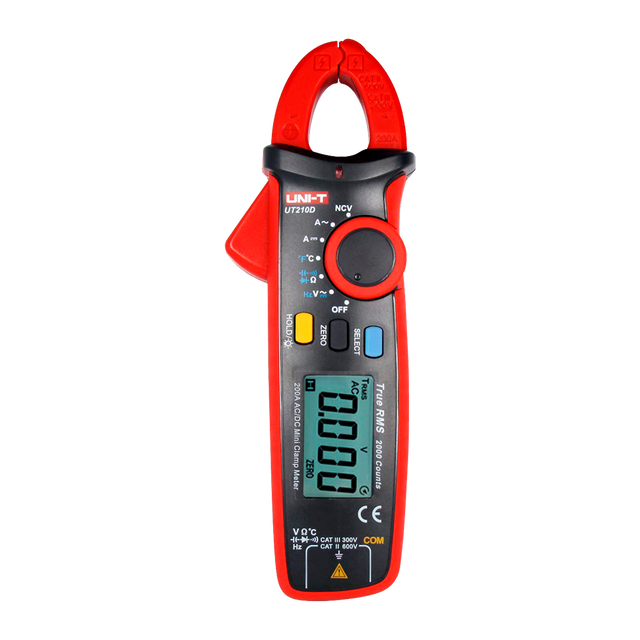

UNI-T Tang amperemeter, DC og AC måling (600V og 200A), True RMS

Log ind for at se priser

Hent datablad

Beskrivelse

UT210D - Digital Clamp Meter

UT210D er et digitalt clamp meter, der muliggør nøjagtige målinger af både strøm og spænding i elektriske systemer. Det er ideelt til tekniske og industrielle applikationer, hvor præcision er afgørende.

Brand Uni-T
Measuring range DC and AC current DC 200A ±(2%+3)
AC 200A ±(2.5%+8)
DC and AC voltage measuring range DC 600V ±(0.7%+3)
AC 600V ±(1%+3)
Resistance measuring range 20MΩ ±(1%+2)
Capacitance measuring range 20mF ±(4%+5)
Frequency measurement range 60kHz ±(0.1%+4)
Temperature measurement range -40~1000℃ ±(1%+3)
Display accounts Up to 2000
Display dimensions 39.3mm x 26.5mm
Auto Range / Manual Range / True RMS Yes, it has
Diode test 3V
VFC and NCV function (Non-contact voltage detection) Yes, it is available
Relative mode Does not have
MAX/MIN register Does not have
Continuity test Yes, it is available
ZERO Mode Yes, it is available
Clamp opening 17mm
Low battery indicator If you have (<3.6V)
Input protection Yes, it is available
Input impedance DCV <10MΩ
Power 3 x batteries (R03) 1.5V
Dimensions 220 (H) x 75 (W) x 40 (D) mm
Weight 231.7 g
Security CAT II 600V/ CAT III 300V CAT III [%VAR%]

Specifikationer
  • Producent
    Uni-T
  • Type
    Strømtang
  • Features
    True RMS

Dokumenter

Download dokumenter
