Varenr. UT171C

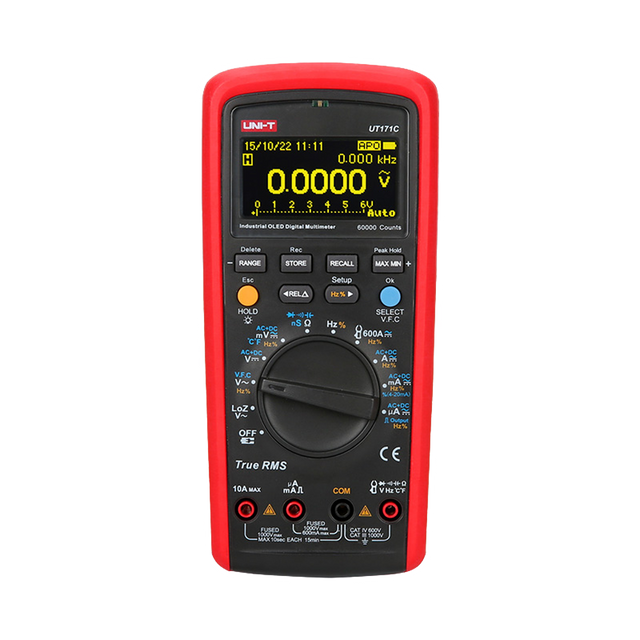

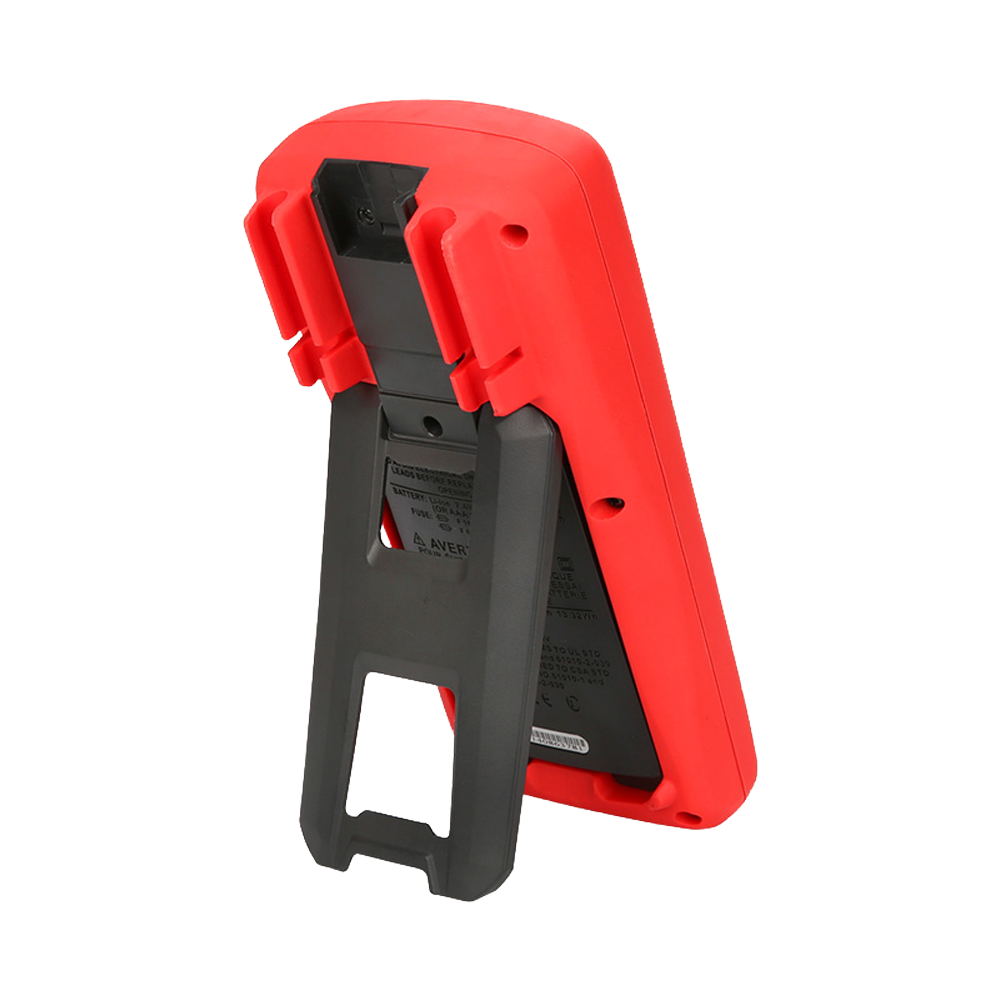

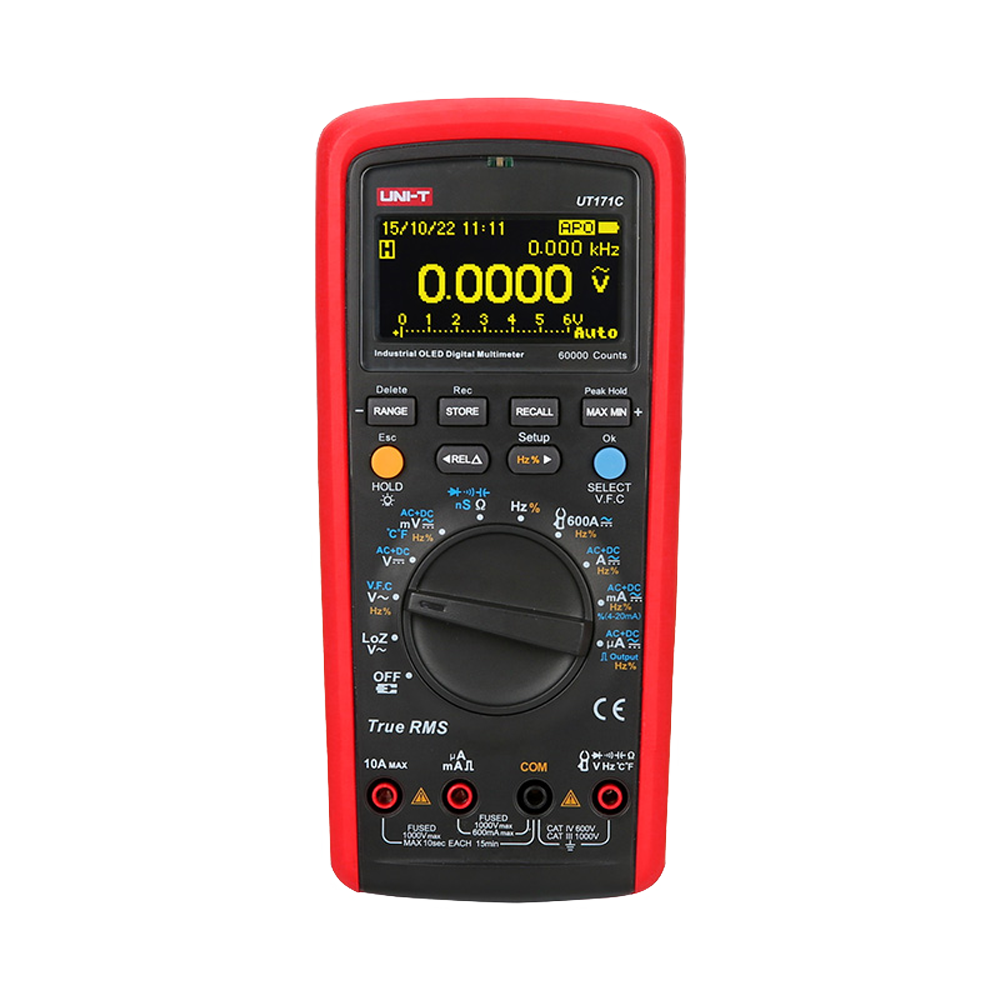

UNI-T Digital multimeter, OLED

UNI-T Digital multimeter, OLED er ikke på lager – men bestil bare og vi vender tilbage med forventet leveringstid.

Log ind for at se priser

Hent datablad

Beskrivelse

UT171-serien er multimetre i industriel kvalitet, der bruges af professionelle. UT171C's OLED-display har en fantastisk betragtningsvinkel og er perfekt til arbejde i lave temperaturer.

Brand Uni-T
Measuring range DC and AC voltage DC 1000V ±(0.025%+5)
AC 1000V ±(0.4%+40)
DC and AC current measuring range DC 10A ±(0.15%+2)
AC 10A ±(0.75%+5)
Resistance measuring range 60MΩ ±(0.05%+2)
Capacitance measuring range 60mF ±(2.5%+40)
Frequency measurement range 10Hz~10MHz ±(0.01%+5)
Temperature measurement range -40°C~1000°C ±(1%+30)
Display accounts Up to 60000
Bandwidth 100 kHz
Input impedance for DCV 1GΩ
Auto Range / Manual Range / True RMS Yes, it has
Relative mode Yes, it is available
Continuity test Yes, it is available
Diode test Yes, it is available
LoZ (ACV) Yes, it has
NCV/Data hold/MAX/MIN Yes, it is available
VFC Low Pass Filter (LPF) Yes, it is available
Communications USB/Bluetooth
Duty cycle 0.1%~99.9%
Data storage 9999
Power Lithium Battery 2000 mAh 7.4V
Dimensions 206 (H) x 95 (W) x 55 (D) mm
Weight 384 g
Security CAT III 1000V/ CAT IV 600V CAT IV [%VAR%]

Specifikationer
  • Producent
    Uni-T
  • Type
    Multimeter
