Varenr. AK-A02S

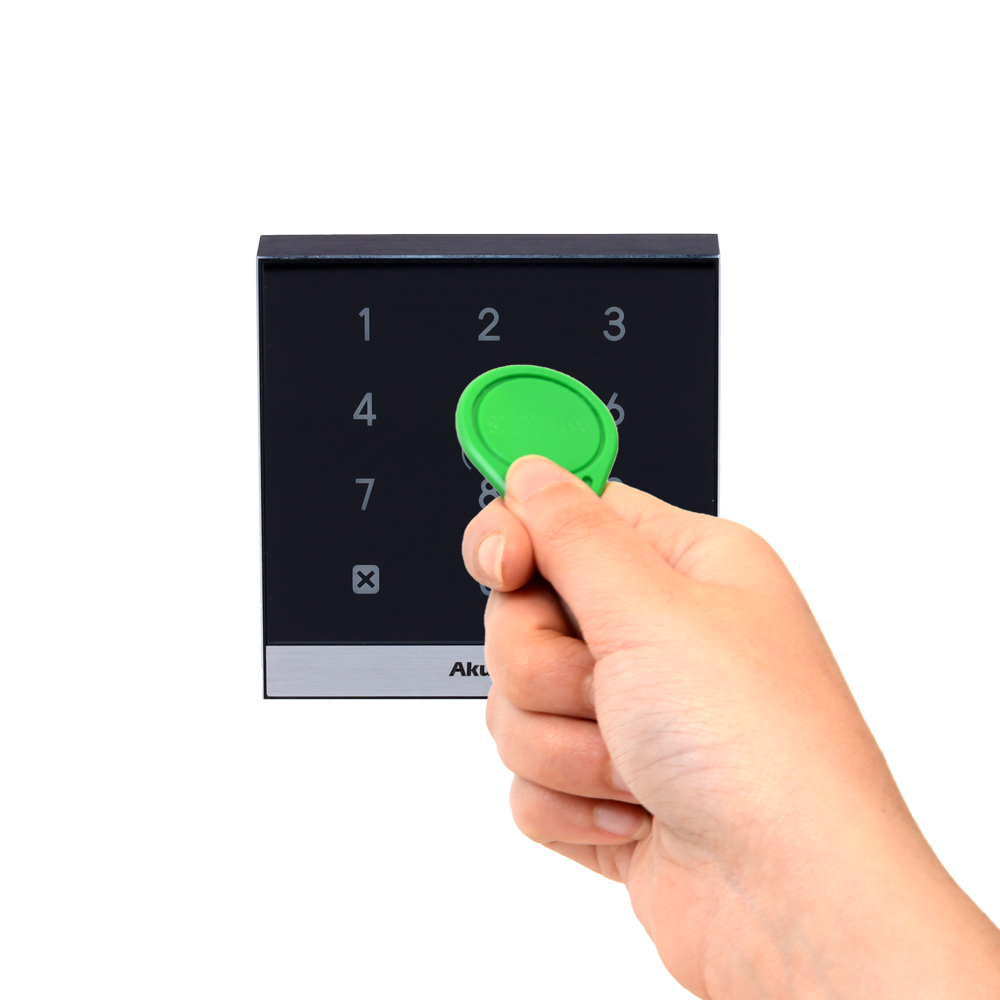

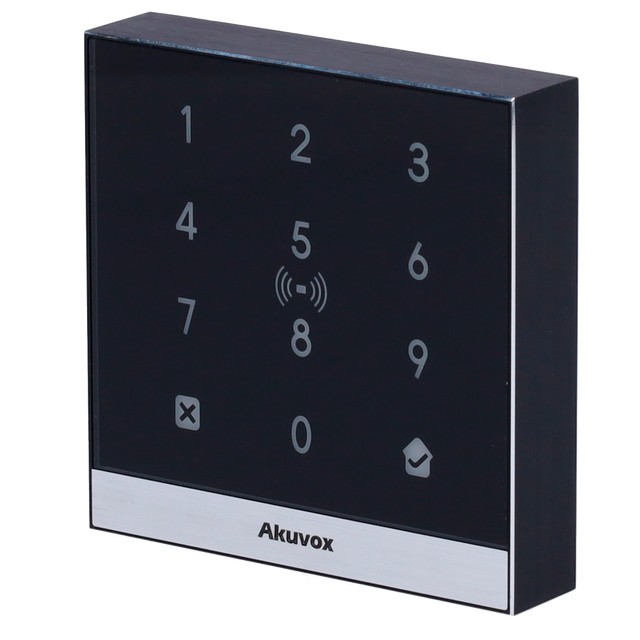

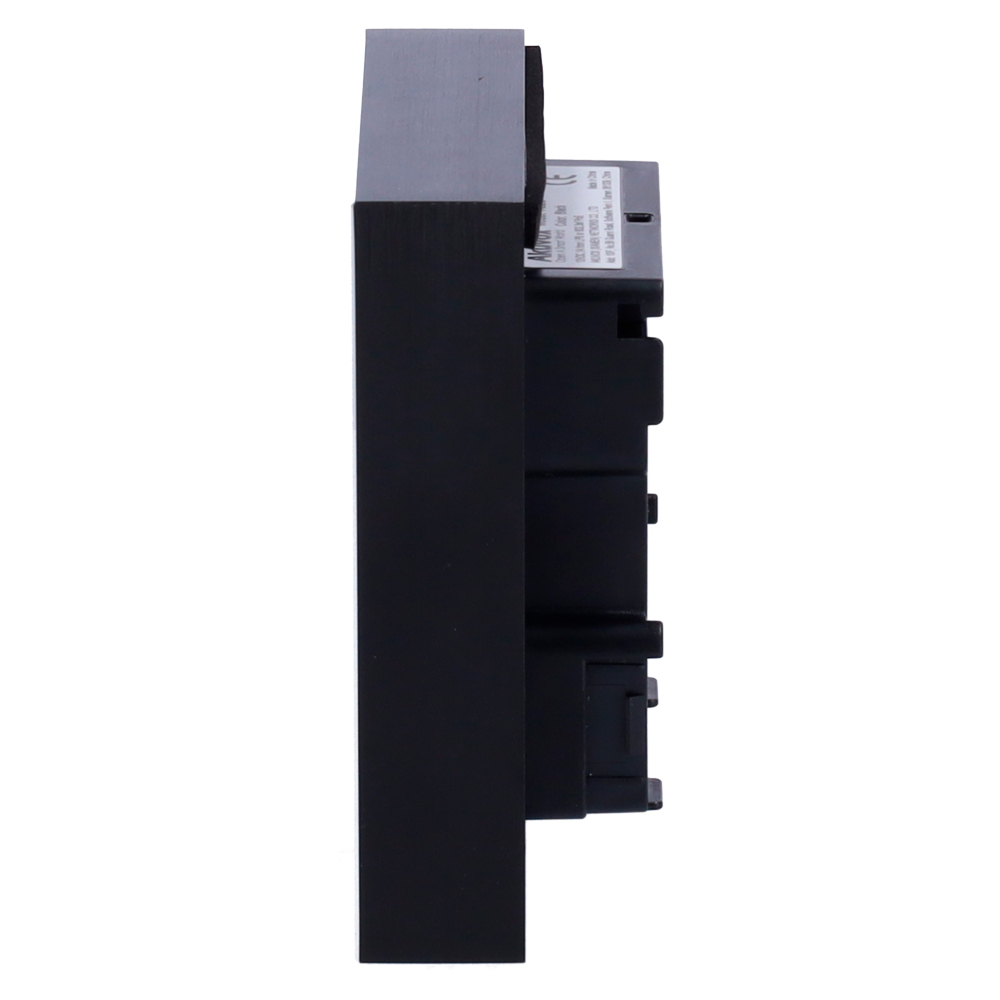

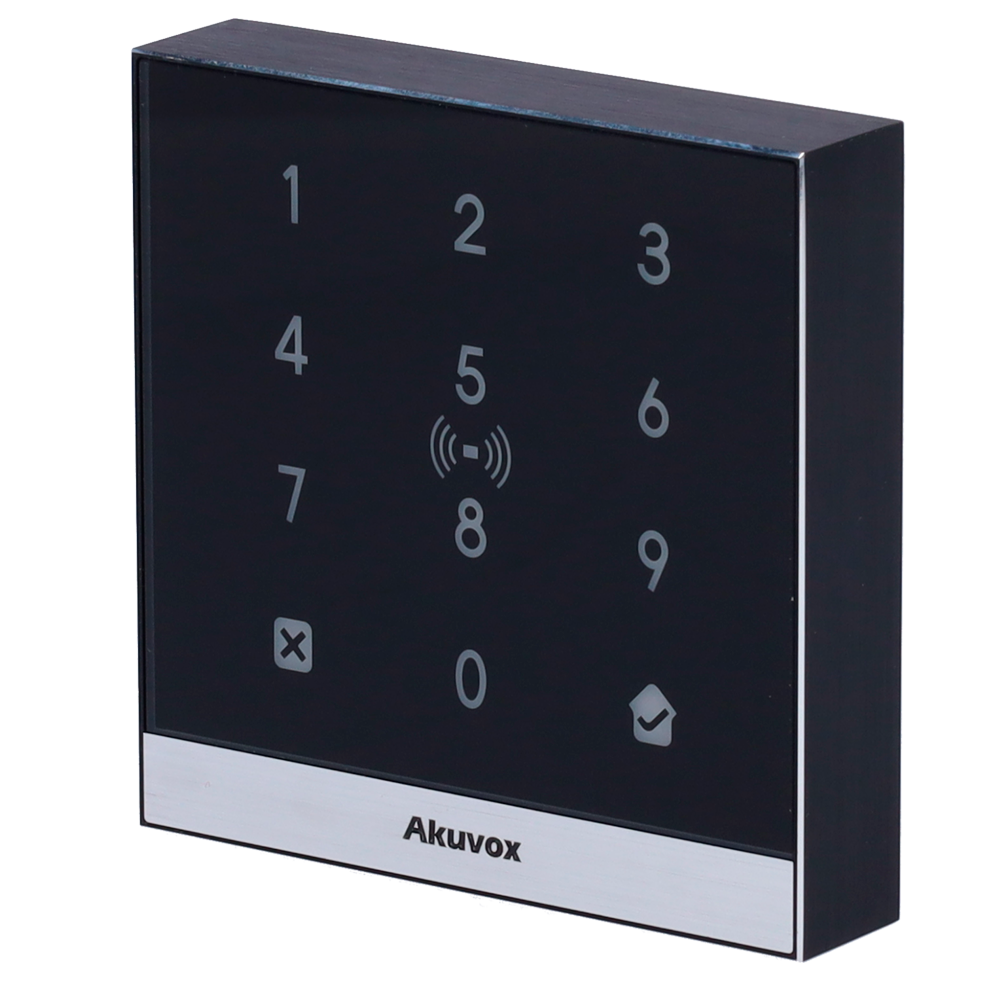

Akuvox tastatur, touch med dørkontroller, ADK, IP / PoE

Log ind for at se priser

Hent datablad

Beskrivelse

Smart, kompakt og stilfuld adgangskontrolterminal

A02 er en IP-baseret adgangskontrolterminal, der kombinerer dørcontroller og kortlæser i én enhed. Det understøtter PIN-koder, RFID-kort og mobil adgang via NFC, hvilket giver brugerne fleksibilitet i legitimationsmuligheder.

Brand Akuvox
Model A02S
Access control Door opening with RFID card EM 125 kHz and MF 13.56 MHz, NFC and PIN, with records
Capacity Up to 20.000 users, 20.000 cards and 20.000 passwords
Records 100.000 registers
Communication TCP/IP and Wiegand
Outputs Wiegand OUT, 1 of relay for main lock (12V/500mA)
Inputs Wiegand IN, 2 of pushbutton, 1 of tamper
Advanced features Anti-passback (configurable via Cloud, in Office Project)
Remote access SmartPlus cell phone application or configuration via WEB browser
Remote access by Cloud: Included
Audio Loudspeaker for opening messages
Network interface Ethernet 10/100 BaseT
Mode of operation Local network and/or via cloud in different networks
Firmware updates Remote with cloud via installer account or via web browser locally
Material Plastic (body) and aluminum alloy (frame)
Degree of protection IP65 y IK07
Temp. operation -20º C ~ +55º C
Dimensions 86 (H) x 86 (W) x 33 (D) mm
Power DC 12 V / 1000 mA máx. / IEEE802.3af PoE
Weight 206 g

Specifikationer
  • Producent
    Akuvox
  • Type
    Adgangskontrol
  • Kommunikation
    IP / Netværk
  • Spænding/strøm
    PoE
  • Farve
    Sort
  • Adgangstype
    PIN kode, Kort/brik
  • Certificering / Godkendelser
    NDAA
