Varenr. AK-A08K

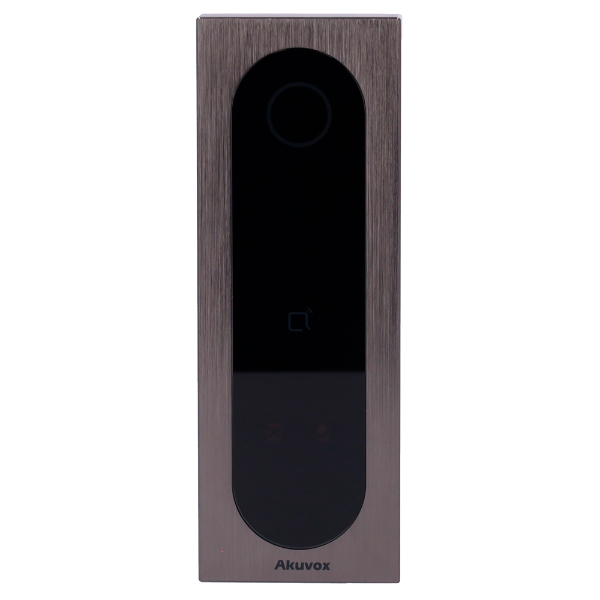

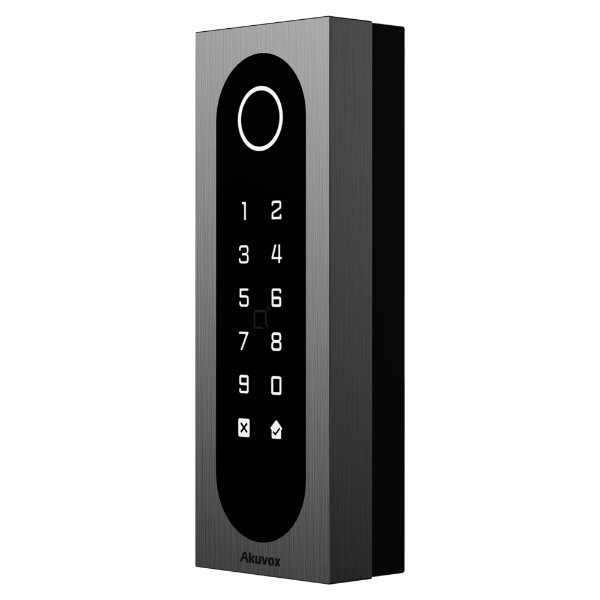

Akuvox ADK, EM, MF, NFC, Pin, dørkontroller, ADK, IP / PoE

Log ind for at se priser

Hent datablad

Beskrivelse
Brand Akuvox
Model A08K
Access control Door opening with RFID card EM 125 kHz and MF 13.56 MHz, NFC and PIN, with records
Capacity Up to 20.000 users and 20.000 cards
Records 100.000 registers
Communication TCP/IP, Wiegand

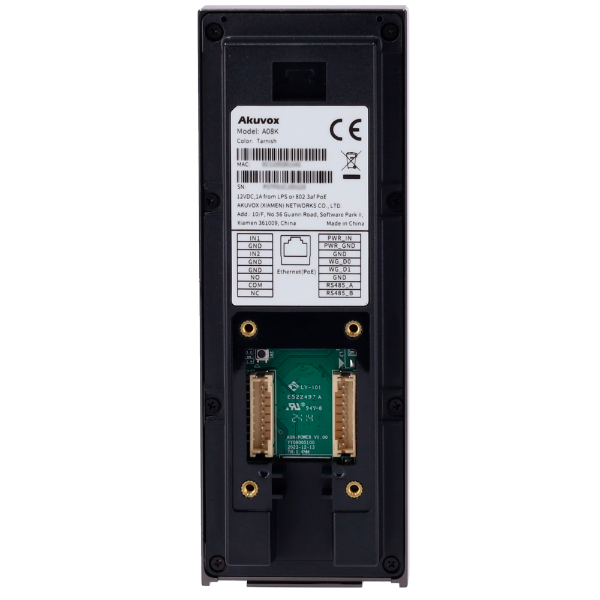

Outputs Wiegand OUT, 1 relay for main lock (12V/500mA) and RS485
Inputs Wiegand IN, 2 of pushbutton, 1 of tamper
Advanced features Anti-passback (configurable via Cloud, in Office Project)
Remote access SmartPlus cell phone application or configuration via WEB browser
Remote access by Cloud: Included
Audio Loudspeaker for opening messages
Network interface Ethernet 10/100 BaseT
Mode of operation Local network and/or via cloud in different networks
Firmware updates Remote with cloud via installer account or via web browser locally
Material Plastic (casing), aluminium alloy (frame) and tempered glass (front)
Degree of protection IP65 y IK09
Temp. operation -20º C ~ +55º C
Dimensions 140 (H) x 50 (W) x 27 (D) mm
Power DC 12 V / 1000 mA máx. / IEEE802.3af PoE
Weight 325 g

Specifikationer
  • Producent
    Akuvox
  • Type
    Adgangskontrol
  • Kommunikation
    IP / Netværk
  • Spænding/strøm
    PoE
  • Farve
    Sort
  • Adgangstype
    Kort/brik, PIN kode
  • Certificering / Godkendelser
    NDAA

Dokumenter

Download dokumenter
