Varenr. AK-C313W-2

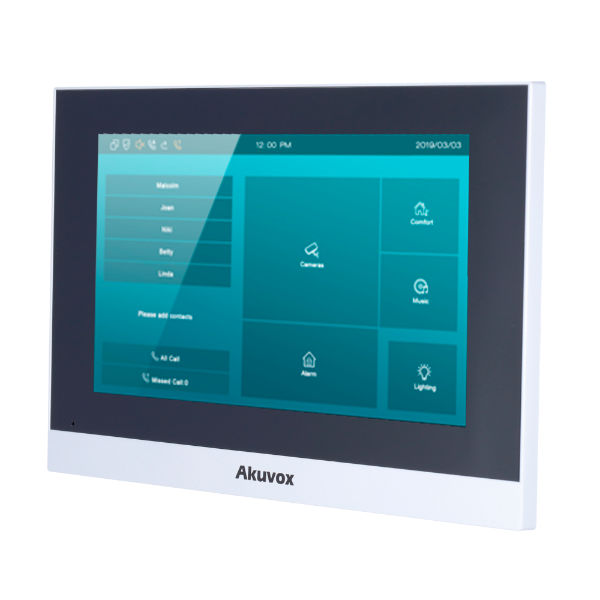

Akuvox 2-Wire WiFi Linux indendørs station, 7"

Hent datablad

Beskrivelse

Brand	Akuvox
Model	C313W-2
Operating system	LINUX OS
Hardware	RAM: 64MB \| ROM: 128MB
LCD	7" TFT 800x480
Capacity	Contacts: 500 Messages: 100 Call records: 100
Operation mode	Capacitive touch panel
Inputs	8 configurable alarm inputs and 1 buzzer inputs
Outputs	1 of relay
Audio	Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology
Audio Format	SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722, DTMF (RFC2833), SIP Info
Remote access	SmartPlus cell phone application or configuration via WEB browser Remote access by Cloud: Included
Mode of operation	Local network and/or via cloud in different networks
Firmware updates	Remote with cloud via installer account or via web browser locally
Network interface	Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n

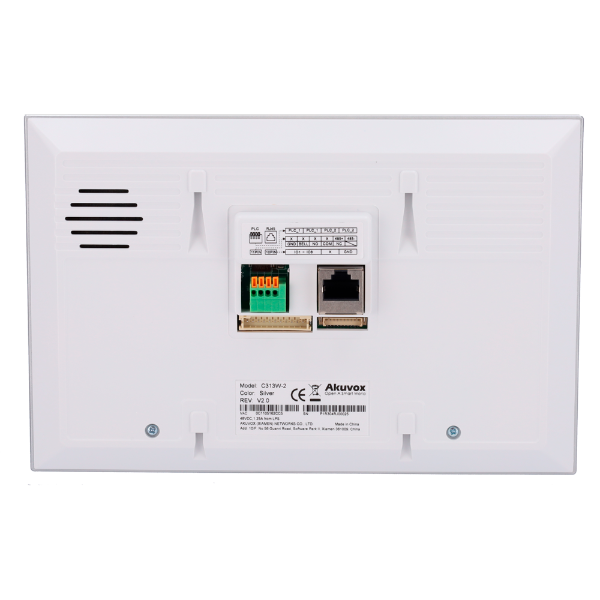

Ports of 2-hilos	2 port pairs: own power supply and power supply from external board or monitor
Power	DC 24 V / 48 V \| 600 mA max.
Temp. operation	-10º C ~ +45º C
Dimensions	200.2 (W) x 132.2 (H) x 27.2 (D) mm
Weight	600 g
