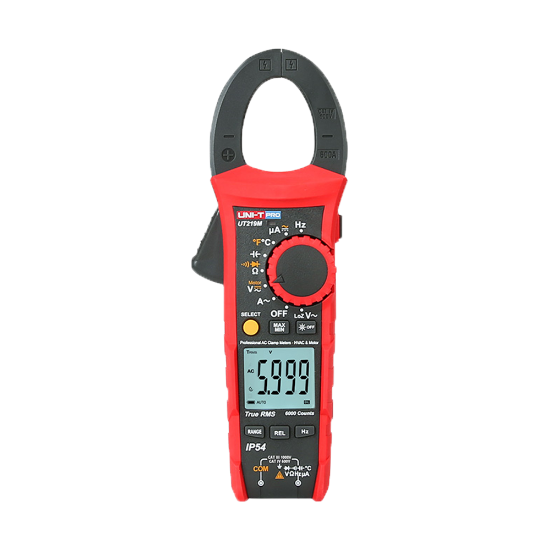

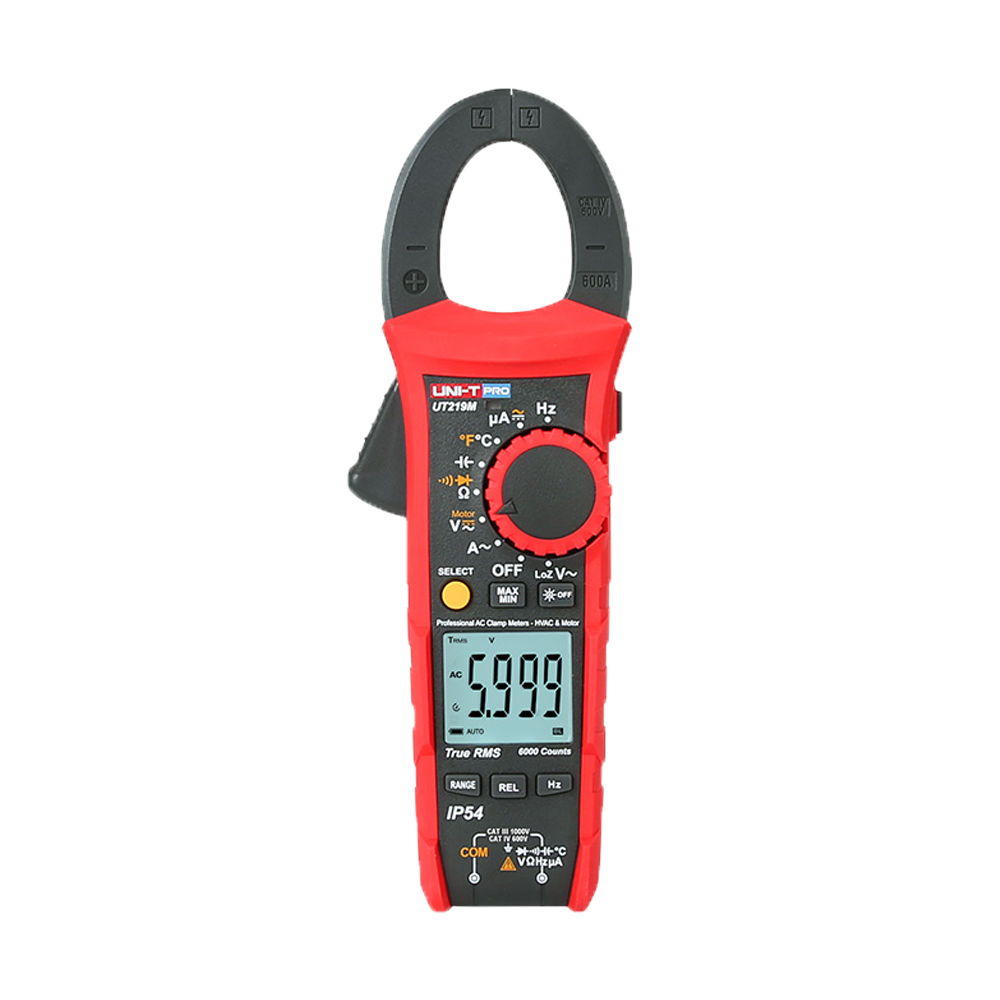

UT219M - Digital Clamp Meter
UT219-serien er et professionelt 600A true RMS-tangmeter med CAT IV 600V-klassificering. Det er industrielt designet med IP54-klassificering og kan modstå en faldtest på 2 meter til måling i barske miljøer. Denne serie er velegnet til professionelle elektrikere, HVAC/R og motorteknikere. Læs mere om denne specifikke model i datablad
| Brand | Uni-T |
| Measuring range AC current | AC: 600A ±(1.8%+6); Response frequency: 40~400Hz |
| DC and AC voltage measuring range | AC: 1000V ±(1%+6); Response frequency: 40~1000Hz
DC: 1000V ±(0.6%+3) |
| Resistance measuring range | 60MΩ ±(1%+3) |
| Capacitance measuring range | 60mF ±(4%+7) |
| Frequency measurement range | 600Hz~40MHz ±(0.1%+6) |
| Temperature measurement range | -40ºC~1000ºC ±(2%+5) |
| Duty cycle | 0.1% ~ 99.9% ±(2.6%+7) |
| Display accounts | Up to 6000 |
| Display dimensions | 38mm x 24mm |
| Auto Range / Manual Range / True RMS | Yes, it has |
| Diode test | Around 3V |
| Auto range | Yes, it is available |
| VFC and NCV function (Non-contact voltage detection) | Yes, it is available |
| Motor test 3-phase | Yes, it is available |
| Relative mode | Yes, it is available |
| MAX/MIN register | Yes, it is available |
| Continuity test | Yes, it is available |
| Low battery indicator | If you have (<3.6V) |
| Input protection | Yes, it is available |
| Input impedance DCV | > 10MΩ |
| Power | 3 x batteries (R03) 1.5V |
| Dimensions | 234.6 (H) x 82 (W) x 47 (D) mm |
| Weight | 310 g |
| Security | CAT IV 600V |
