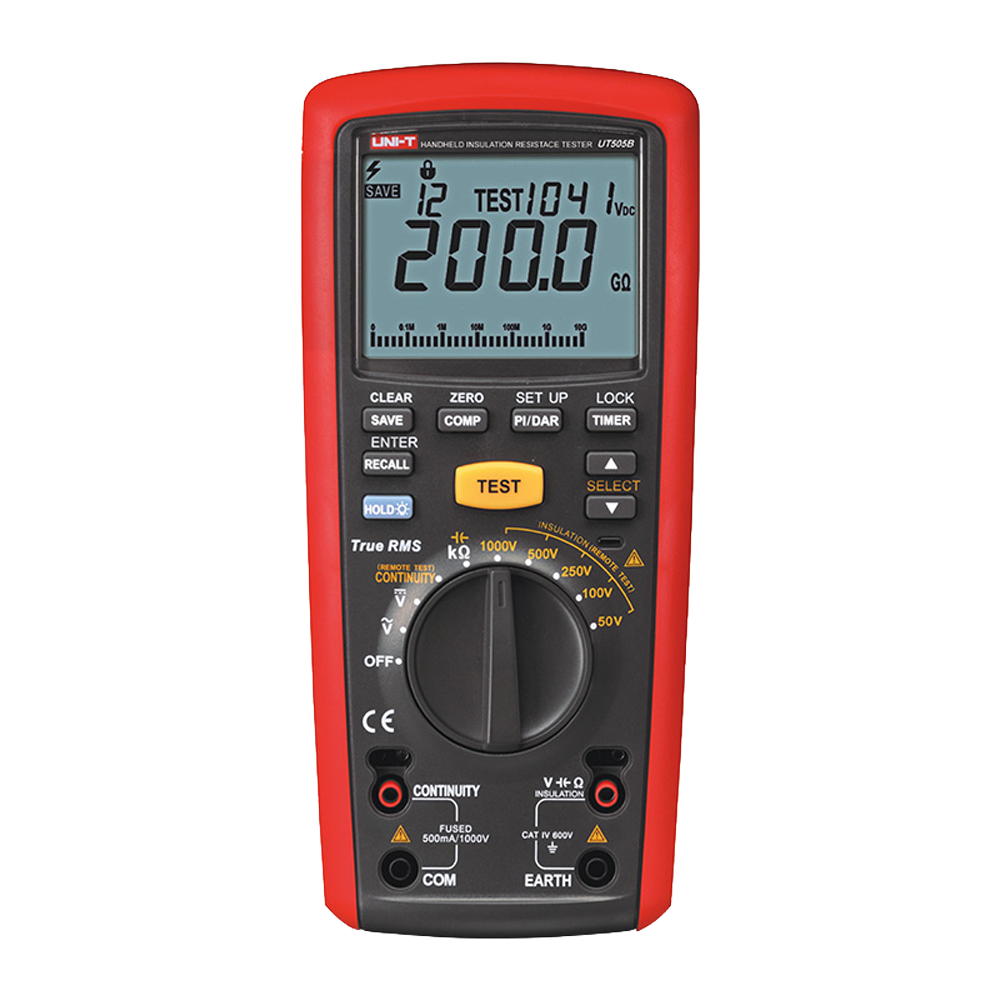

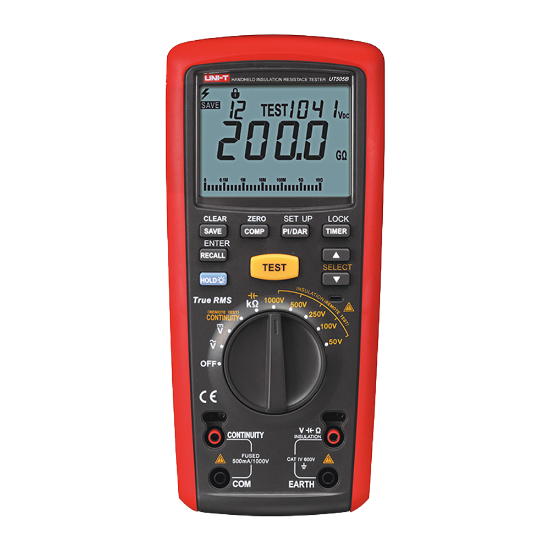

UT505B
True RMS-isolationsmodstandstesteren kombinerer funktionerne fra et digitalt multimeter og en isolationsmodstandstester. Udover de typiske multimeterfunktioner kan disse målere også måle isolationsmodstand, PI og DAR for at bestemme isolationsstatus. UT505 kan bruges til isolationsmodstandstestning af præcisionsværktøj, motorer, kabler, transformere, afbrydere, elektriske apparater og isolerede materialer.
| Brand | Uni-T |
| Isolation Resistance | 50V: 0.01MΩ~50MΩ ±(3%+3) / 50MΩ~1GΩ ±(3%+3)
100V: 0.01MΩ~100MΩ ±(3%+3) / 100MΩ~1GΩ ±(3%+3) / 1GΩ~10GΩ ±(10%+3)
250V: 0.01MΩ~200MΩ ±(1.5%+5) / 200MΩ~1GΩ ±(1.5%+5) / 1GΩ~20GΩ ±(10%+3)
500V: 0.01MΩ~500MΩ ±(1.5%+5) / 500MΩ~1GΩ ±(1.5%+5) / 1GΩ~50GΩ ±(10%+3)
1000V: 0.01MΩ~2GΩ ±(1.5%+5) / 2GΩ~10GΩ ±(5%+3) / 10GΩ~20GΩ ±(7%+3) / 20GΩ~200GΩ ±(20%+3) |
| Charging current | 50V (R=50kΩ) 1mA; 0%~10%
100V (R=100kΩ) 1mA; 0%~10%
250V (R=250kΩ) 1mA; 0%~10%
500V (R=500kΩ) 1mA; 0%~10%
1000V (R=1MΩ) 1mA; 0%~10% |
| Short circuit current | < 2mA |
| General resistance | 0.01kΩ~10MΩ ±(3%+3) |
| AC and DC voltage measuring range | DC: 0V~600V ±(2%+3)
AC: 0V~600V ±(1.5%+5) |
| Frequency measurement range | 45~1kHz ±(0.1%+3) |
| Capacitance measuring range | 100pF~500μF ±(5%+5) |
| Display accounts | Up to 6000 |
| Dielectric Absorption Ratio (DAR) | Yes, it is available |
| Polarization Index (PI) | Yes, it is available |
| High voltage buzzer | Yes, it is available |
| Overload indicator | Yes, it is available |
| Internal resistance test 10 MΩ | Yes, it is available |
| Dimensions | 103 (H) x 225 (W) x 59 (D) mm |
| Display dimensions | 78mm x 59mm |
| Power | 6 x batteries 1.5V (LR6) |
| Weight | 530 g |
| Security | CAT II 1000V/ CAT III 600V CAT III [%VAR%] |
