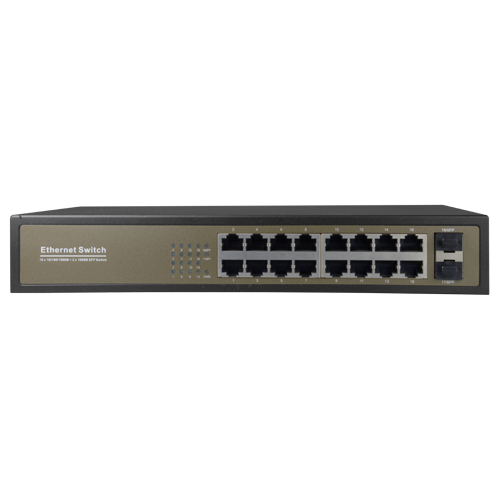

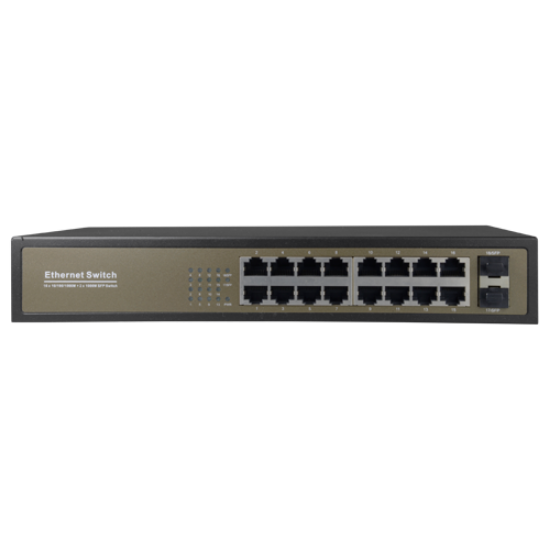

Interface | 16 Gigabit ports (Port 1~16) and 2 SFP (fiber) ports |
Port speed | 16 x 10/100/1000 Mbps + 2 SFP 10/100/1000 Mbps |
Network Media | 10Base-T: Cat.3/4/5 (=100m) 100BASE-TX: Cat.5/Above (=100m) 1000BASE-TX: UTP Cat.5e/Above (=100m) |
Switching Capacity | 36G |
Packet Forwarding Rate | 26.78Mpps |
Packet Buffer Memory | 4.1Mb |
MAC Table Size | 8K |
Exchange mode | Store and forward |
Supported Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab, IEEE802.3z |
Power | AC 100~240 V, 50/60Hz, 1A |
Power | Maximum 15W |
Operating temperature | -20º C ~ 55º C |
Dimensions | 181 (D) x 44.6 (H) x 270.5 (W) mm |
